Engine
Cummins X15 diesel engine
605 bhp
1,950 lb-ft of torque
Transmission
Allison HD4000MH
6-speed automatic
Axle ratio
4.18

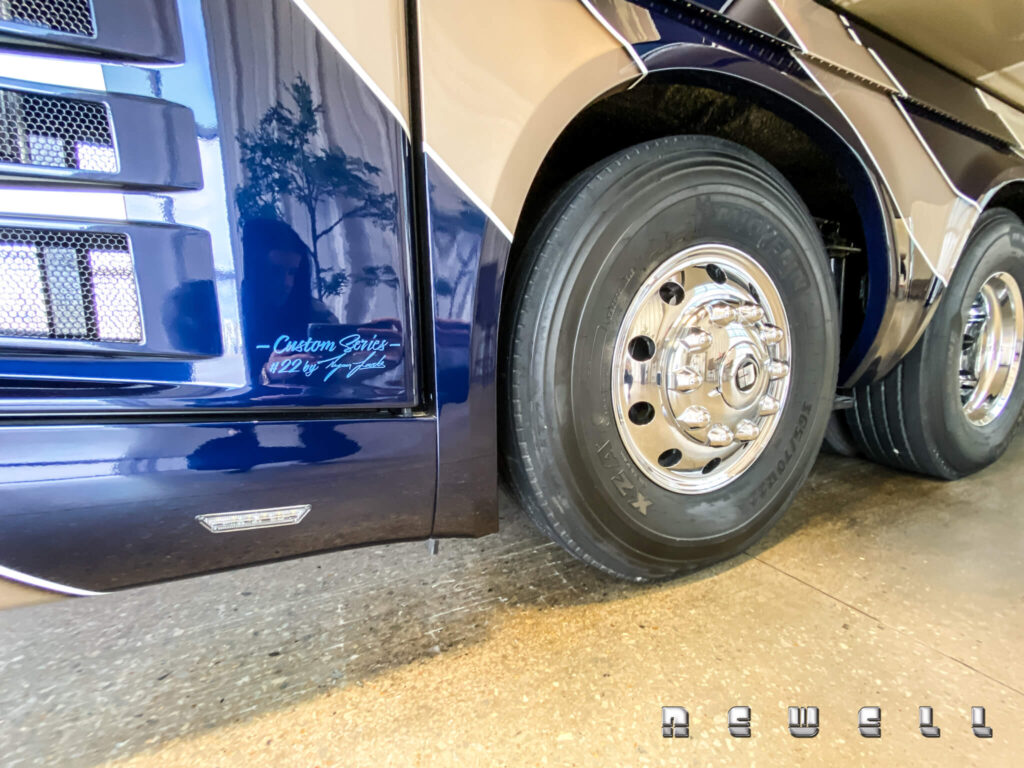

Tires
Drive axle: Michelin XZA-2, 315/80R22.5, Load Range L
Front axle: Michelin XZA-365, 70R22.5, Load Range L
Tag axle: Michelin XZA-365, 70R22.5, Load Range L
Brakes
Air disc brakes
6-channel ABS / ATC
Suspension
ZF active suspension system
ZF independent steer axle
ZF wide-base drive axle
ZF active-steer tag axle
Alternator
12-volt high-amp alternator
Batteries House:
House batteries:
Six type-8D AGM sealed batteries
PulseTech automatic equalization
Chassis batteries:
Three Group 31 AGM sealed batteries
PulseTech automatic equalization
Steering
ZF variable-ratio power steering
Easi-Steer™ electronic steering assist
Inverter
Dual Outback 2800-watt pure sine wave
Electrical service
90-amp service
SurgeGuard automatic protection
Generator
20-kilowatt generator
Tier 4 compliant
Exterior Width
102 inches
Interior headroom
89 inches
Exterior height
13 ft 5 in (with in-motion satellite)
Gross vehicle-weight rating
63,600 lbs.
Gross axle-weight rating, front
20,000 lbs.
Gross axle-weight rating, drive
28,600 lbs.
Gross axle-weight rating, tag
16,000 lbs.
Fresh-water capacity
143 gallons
Holding-tank capacity
143 gallons
Fuel capacity
200 gallons
DEF (Diesel Exhaust Fluid) capacity
21 gallons
Safety and Security
Automatic traction control
Air horns
Air brakes with 6-channel ABS anti-skid system
Heated, electrically adjustable chrome rearview mirrors
Separate electrically adjustable wide-angle mirrors
Two-stage engine compression brake
Panoramic windshield wipers with intermittent feature
Fire extinguisher in engine compartment
Two Halon fire extinguishers in interior
Performance, Ride and Handling
Cummins X15 diesel engine
Allison 6-speed World Transmission
ZF variable-ratio power steering
EasiSteer™ electronic steering with driver-selected boost
ZF Active Suspension with Comfort or Sport modes
ZF independent front suspension with anti-roll bar and disc brakes
ZF wide-base drive-axle suspension with anti-roll bar and disc brakes
ZF steering tag-axle suspension with disc brakes

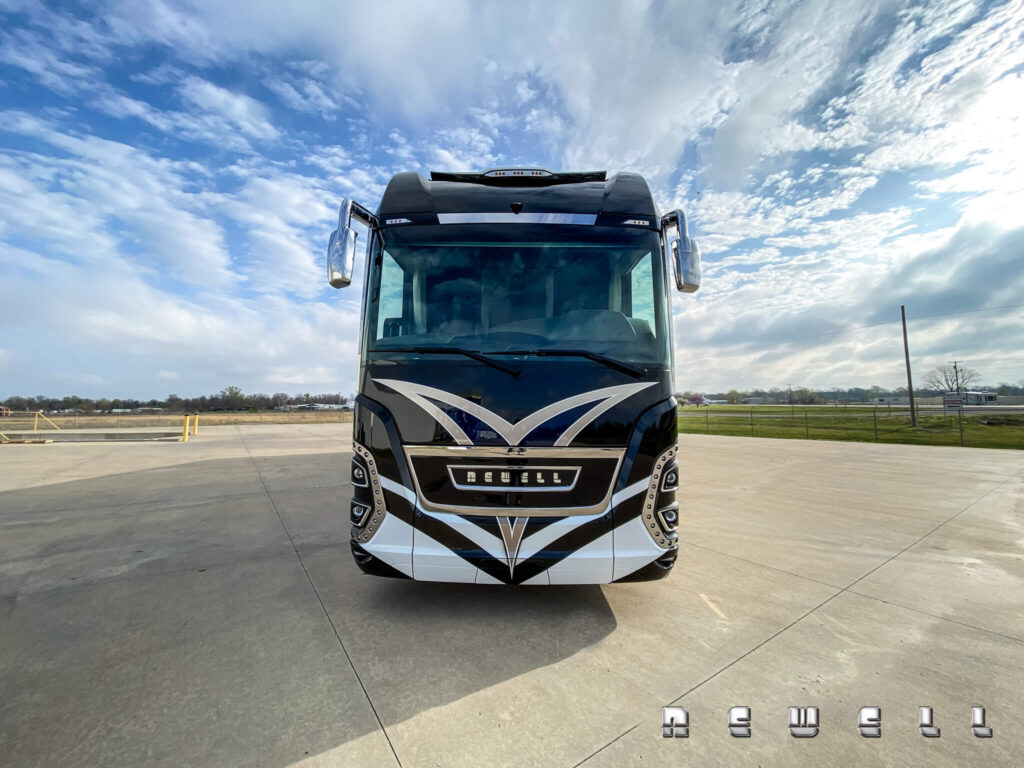

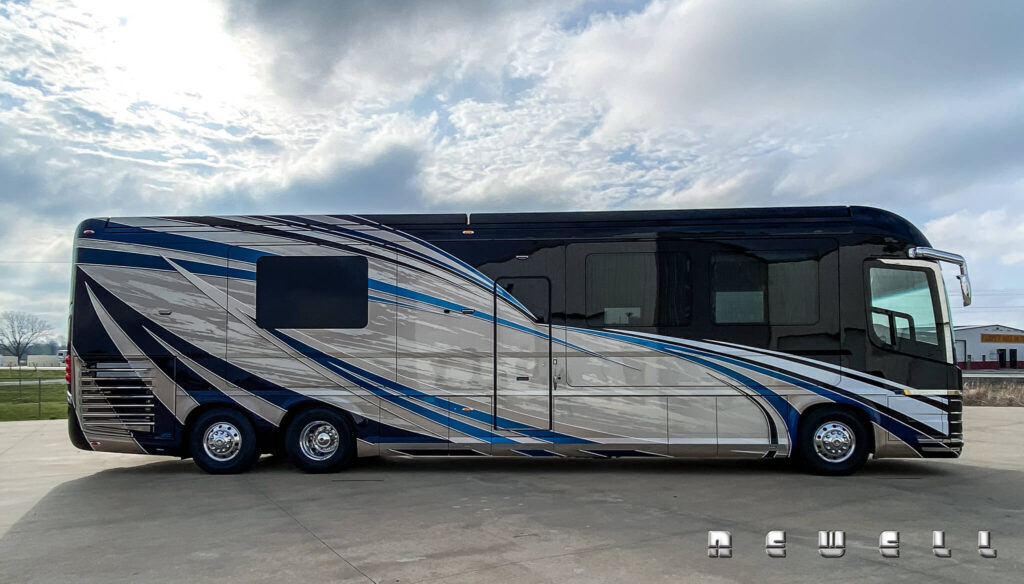

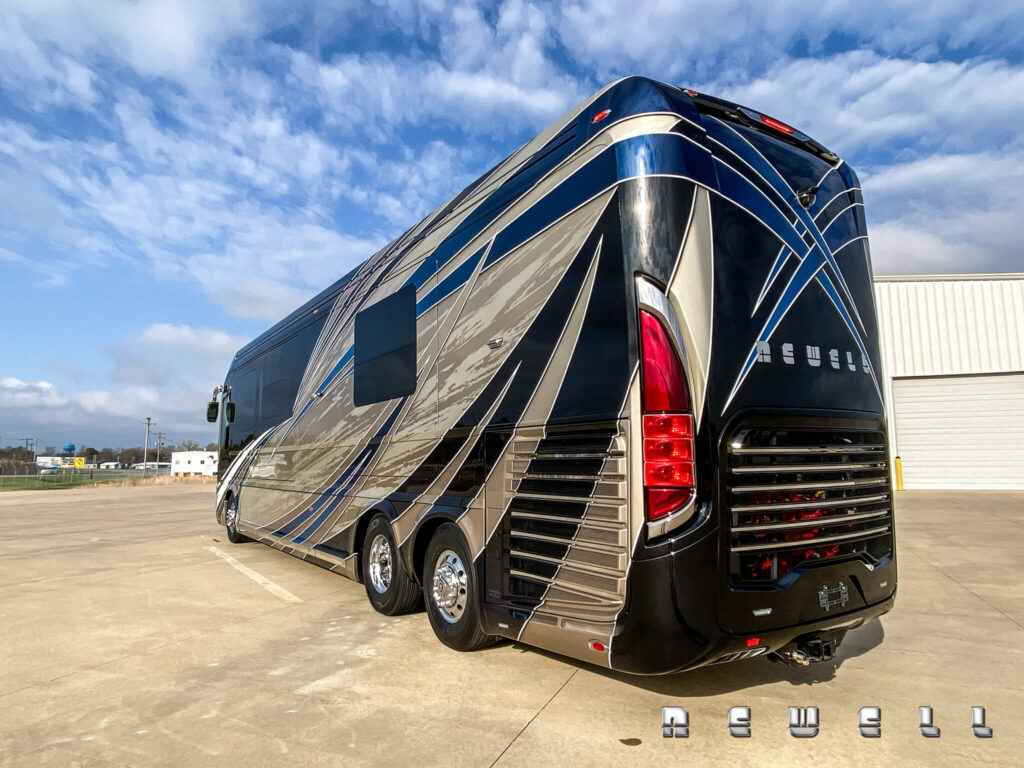

Appearance
Porsche Design advanced styling
Genuine chrome headlights
Genuine chrome taillight trim
Daytime LED running lights (inner edges of headlights)
Polished aluminum wheels with chrome trim
Stainless-steel bay sill moldings
European-style chrome high-mount mirrors
Illuminated Newell front badge
LED headlights
Other Features, Service and Maintenance
Fuel filter/water separator for main engine
Fuel/water separator for Aqua-Hot
Automatic air-system dryer
Class V trailer hitch
25,000-lb max load
4,000-lb tongue weight
Engine-driven driver’s area heater and air conditioner
Retractable air hose reel in passenger-side engine bay
Spare-parts kit
Strength and Durability
Custom Newell bridge-construction frame
Aircraft-style aluminum body construction
Integrated bumpers
Mat-reinforced fiber composite end caps
Comfort and Convenience
Fast-idle feature in cruise control
Aqua-Hot engine coolant preheater
Automatic air-leveling system
One-piece fiberglass liner for tankage bay with drain
Fully insulated floor
Insulated carpeted storage bays
Insulated, flush-mounted double-paned windows (except windshield)
Sprayed-urethane insulation in sidewalls and roof
Custom window sizing and placement
Power-operated full-length patio awning with remote and wind sensor
Power-operated window awnings
Pneumatic entry door with keyless locking
Bi-fold hinge-up bay doors with gas-strut assist and central locking
Sunroof with screen over rear closet or rear bath
Dual fuel bay doors with EZ View fuel door cameras
Comfort and Convenience
Electric shore power-cord reel with remote
Generator start switches at driver, galley, bedroom, and shore cord access door
Generator buddy plug
Emergency-start 12-volt battery merge
Safety Features
Automatic generator fire extinguisher and shutdown system
Entry door video camera viewable on Intrepid™ monitors
Burglar alarm with entry-door switch
120/240 Volt System
50-amp shore / 90-amp generator service
120 and 240 volts
20 kW turbocharged diesel generator (front mount)
Vibration-insulated generator mounts
Twin sine-wave inverter/chargers
2,800 watts each
5,600 watts total
Remote inverter/charger control panel with data display
Automatic shoreline/generator transfer switch
Automatic surge and fault protection
Shore power cord with adapters
12-Volt System
Independent chassis and house systems
Three Group 31 AGM batteries for engine start
Six 8D Concord Lifeline AGM batteries for house
Master switches for both systems
PowerPulse automatic battery conditioners/equalizers
High-amp 12-volt main engine alternator
60-amp 12-volt auxiliary backup battery charger
Entertainment Systems
Newell Infotainment display
AM/FM
XM Satellite
Bluetooth
Three premium dash speakers
Dolby 5.1 home theater system (front salon)
Five Anthony Gallo speakers
Whole-home AV system
Two handheld universal remotes
One iPad mini with Intrepid 2.0 control app
Large-format HD LED TV in front salon
Large-format HD LED TV in bedroom
DirecTV HD DVR system
Amplified TV antenna
Cable TV connection
Driving Controls
Intrepid™ advanced digital dash with driver-side joystick
RV-compatible Garmin GPS (driver and passenger)
Tire pressure monitoring system for all eight tires
Carbon fiber instrument panel
Aluminum instrument bezels
Genuine leather dash cover
SmartWheel leather steering wheel with fingertip controls
Power tilt and telescoping steering column
Suspended automotive-style brake pedal
Integrated camera system

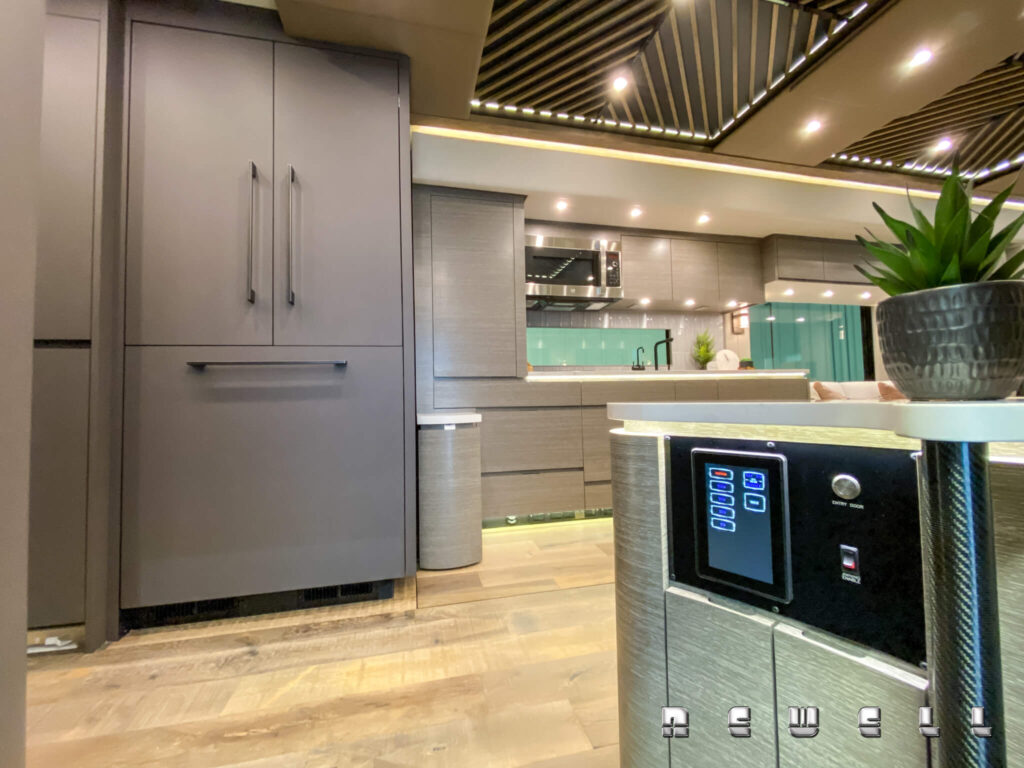

Cabinetry
Premium flush-style cabinets
High-pressure laminate finishes
European-style concealed hinges
Deluxe auto-close drawer glides
Positive latches on drawers
Pull-out pantry (most floorplans)
Integrated rectangular kitchen sink
Flush galley sink cover
Solid-surface premium countertops
Hinged bedboard with powered opener (most floorplans)
Furniture
Deluxe air-ride driver’s seat with heat, cooling, and massage
Deluxe co-pilot seat with heat, cooling, massage, and three-point restraint
Driver’s console with storage
Bed sizes from single to king
Villa residential-style hide-a-bed sofa with air mattress
Recliner
Upholstered ottoman with solid-surface top
Fabrics and Miscellaneous Finishing Materials
Custom décor from premium decorator-quality materials
Premium carpeting
Quilted designer bedspread with shams or pillow flap
Custom lined cab-window draperies
Power-operated windshield privacy shade
Power cab sun shades
Climate Control
Aqua-Hot diesel/electric hydronic heating system
Continuous-flow water heater
Heated floors under galley and bath
Ducted roof air conditioning
Three A/C units (42’ and under)
Four A/C units (43’ and over)
Skylight with screen in rear bath
Plumbing
Heated, insulated tankage compartment
120-volt marine water pump
Auxiliary 12-volt water pump
Automatic freshwater fill
Deluxe tankage compartment trim
Hot/cold service faucet
Everpure dual-cartridge water purifier

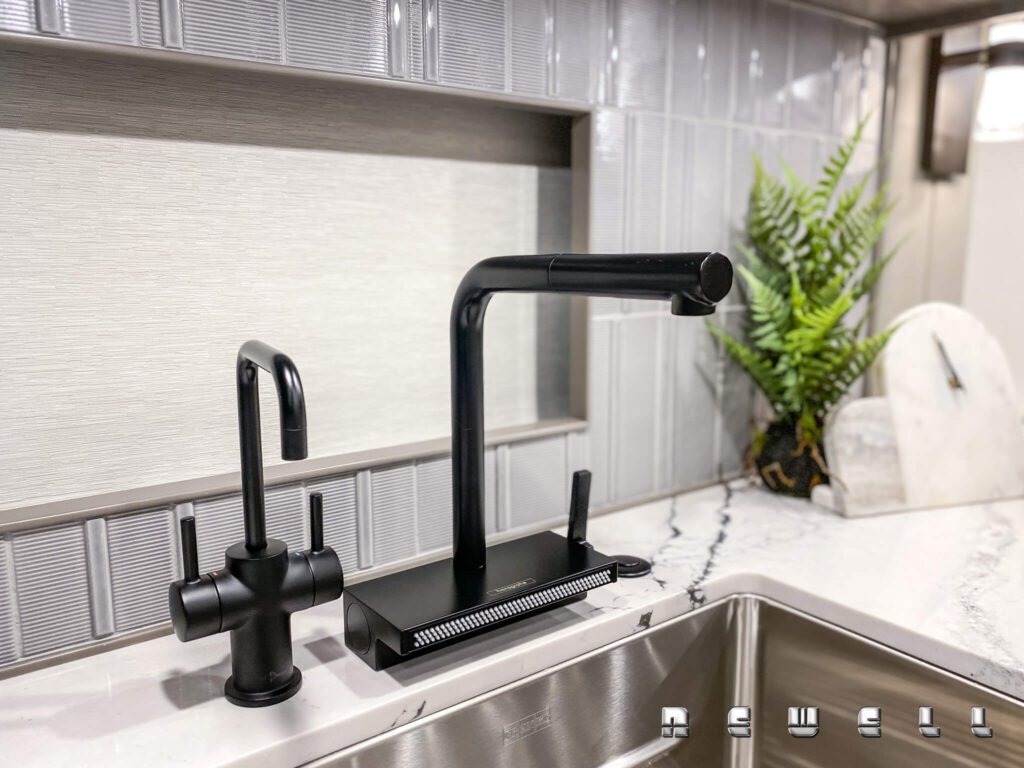

Designer galley faucet
Designer lavatory fixtures
Automatic temperature-controlled shower valve
Active circulating hot water valve for fast warm-up
Electric dump valve with multi-location controls
Enclosed sewer hose storage system
Appliances
Stacked washer and 220-volt dryer
GE Monogram customizable refrigerator/freezer
GE Advantium microwave/halogen oven
Two-burner electric cooktop
Fisher & Paykel DishDrawer dishwasher
Garbage disposal
Monitoring and Controlling
Intrepid™ Coach Management System
Two touchscreen monitors
Remote connectivity
Intrepid™ AV control system
Mini iPad and two universal remotes
Miscellaneous Living and Safety Features
Dual 120-volt auxiliary air compressors
Smoke detector with 10-year battery
Carbon monoxide detector
Choice of full paint schemes
Premium paint with super clear-coat finish
Four-color paint scheme
Chip protection on front cap
Cut-and-buff paint finishing on body
